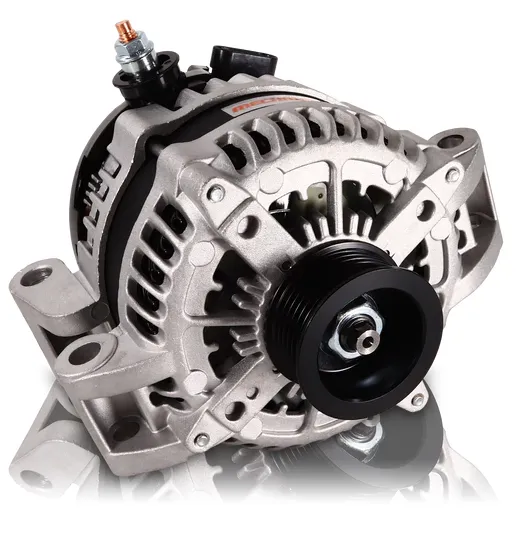

The Elite series offers the highest possible amperage and durability available in a direct bolt in large case alternator. 6 phase technology, combined with massive twin rectifier assemblies and 12 diodes makes these alternators totally durable for daily use. These durable alternators will crank out 200 amps at engine idle speeds, with a full 320 amps HOT RATED at normal cruising speeds. INSTALLATION NOTES: Like most high output alternators, this unit comes equipped with a smaller 1.75 inch diameter alternator pulley, and will require a slightly shorter drive belt to be installed for proper belt tension.
Fitment Guide:
| Make | Model | Engine Size | Year |
| Ford | Bronco | 5.0L / 5.8L | 1993 - 1996 |
| Ford | E Series Van | 4.2L | 1997 - 2003 |
| Ford | Exporer | 4.0L OHV | 1991 - 2001 |
| Ford | F-150 | 4.2L | 1997 - 2004 |
| Ford | F-150 | 5.0L / 5.8L | 1993 - 1996 |
| Ford | Ranger | 2.3L | 1992 - 1997 |
| Ford | Ranger | 2.5L | 1998 - 2001 |
| Ford | Ranger | 3.0L | 1994 - 2005 |
| Mazda | B2500 | 2.5L | 1998 - 2001 |
| Mazda | B3000 | 3.0L | 1994 - 2005 |
2 year performance guarantee.
This limited two year warranty allows the customer to return his or her MechMan alternator for repair for a full two years after the alternator purchase date. This warranty does not cover other parts or equipment on the vehicle, and does not cover labor for removal or installation of the alternator. This warranty is VOID if the MechMan alternator is modified, physically abused, misused, improperly installed, or is not used in the application for which it was designed. The MechMan two year warranty is non-transferrable. The customer must include a copy of the original invoice when sending in their alternator in order to receive warranty service. The customer is responsible for shipping the alternator to the Mechman facility for warranty service, Mechman will pay return shipping back to the customer for all alternators under warranty. As an added service, MechMan will also service any MechMan alternator of any age or condition for the cost of parts and return shipping. (We provide the labor to repair the alternator for free!)
