Product Description
Overview
Overview
Compact voice and broadband solution

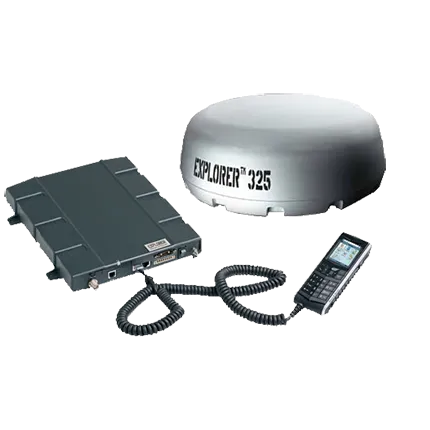

EXPLORER 325 is a compact BGAN system for on-the-move communication. The system consists of three fully integrated units – a transceiver, an IP handset and a roof mountable antenna with magnetic mounts.
Whether you’re engaged in humanitarian operations, cargo transportation, broadcasts or telemedicine, you need easy deployable communication equipment you can always rely on. Regardless of time or place
Instant communication
Simply place the antenna on the roof, connect the antenna and your PC to the EXPLORER terminal, switch on the Thrane & Thrane IP Handset and the vehicle is turned into a mobile communication hub.
Compact

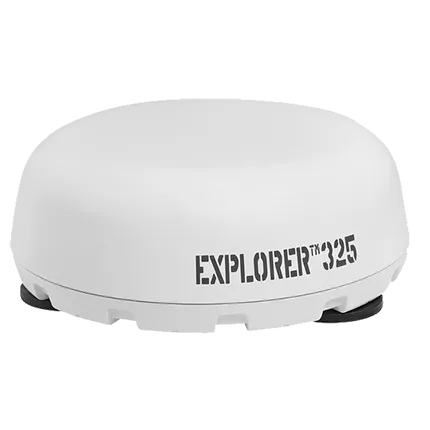

The auto tracking antenna is compact and lightweight, ideal for vehicles on-the-move. It is designed for robust and durable use.
No roaming
BGAN offers mobile broadband connectivity wherever you go at fixed pricing with no roaming fees. With the EXPLORER 325 you know your cost of communication regardless of the number of borders you cross
Tech Specs
Tech Specs

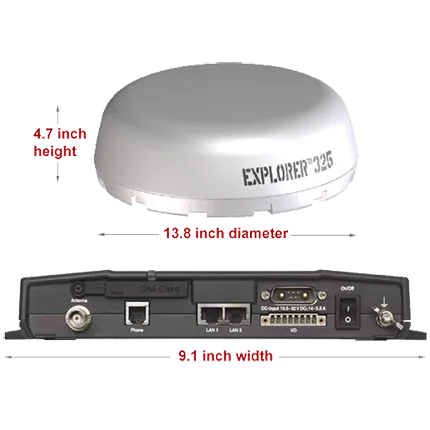

Dimensions
| Transceiver H / W / D: | 41 / 231 / 278 mm 1.6 / 9.1 / 10.9 inches |
| Antenna H / W: | 128 / Ø349 mm 4.72 / Ø13.8 inches |
Weight
| Transceiver: | 2.2kg / 4.9lbs |
| Antenna: | 3.6kg / 7.9lbs (excl. magnets) |
Global Services
| Voice | 4 kbps AMBE 2 |
| Premium voice: | 64 kbps (@elevation>45°) |
| Standard IP: | Up to 464 kbps |
| Streaming IP: | 32, 64, 128 kbps |
| SMS: | 160 characters |
Environmental Conditions
| Ambient Temperature | -25 to 55°C |
| ADU Storage | -40 to 85°C |
| Survival (power on, non functional) | -40 to 80°C |
| ADU enclosure | IPX6 |
| ADU operating humidity | “Exposed” according to EN60 945 |
| BDU enclosure | IP31 |
| BDU operating humidity | 95% non-condensing at 40˚C |
| Icing (survival) | Max 25 mm |
Ship Motion
| Motion Roll | /- 30 deg. per. 4 s, max. 0.7 g tan |
| Pitch | /- 15 deg. per. 3 s, max. 0.6 g tan |
| Yaw | /- 10 deg. per. 5 s, max. 0.3 g tan |
| Surge | /- 0.5g |
| Sway | /- 0.5g |
| Heave | /- 0.7g |
| Turning rate | /- 36˚/s; Acc. 12˚/s² |
| Headway speed | 22 m/s (42 knots) |
| Wind | 100 knots |
Mechanical Shock
| 20g/11 half-sine |
Antenna Connect
| ADU | 50 Ω N, female |
| BDU | TNC-socket, female |
