Name: Inmarsat Explorer 710 BGAN
SKU: 110932

Product Description

EXPLORER BGAN is a series of L-band satellite terminals utilizing the BGAN network from Inmarsat. An EXPLORER BGAN terminal offers a broadband connection and telephony service from anywhere in the world. Every terminal features easy set-up and operation. Simply connect a PC or phone, point the terminal towards a satellite using the compass and sound indicator, and you are instantly connected from anywhere in the world.

Overview

Raising the BGAN bar

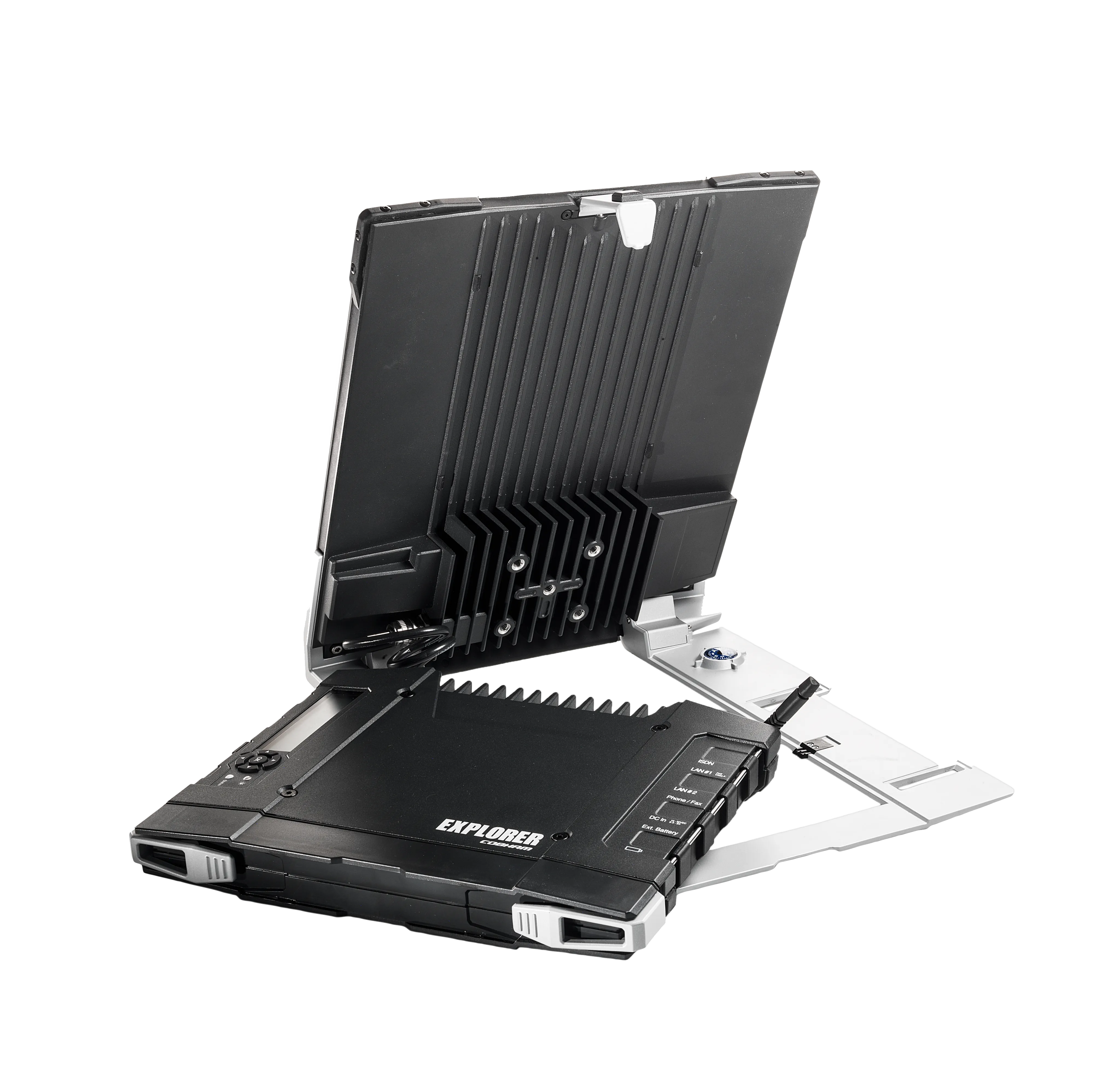

EXPLORER 710 is a portable satellite terminal set to usher in a new era in the world of BGAN by setting new standards for size, speed and features

In The Box:

EXPLORER 710 Transceiver & Antenna
Rechargeable lithium ion battery
Antenna cable
2m ISDN/LAN cable
115/230VAC power supply
Quick start guide.

Smallest and Lightest

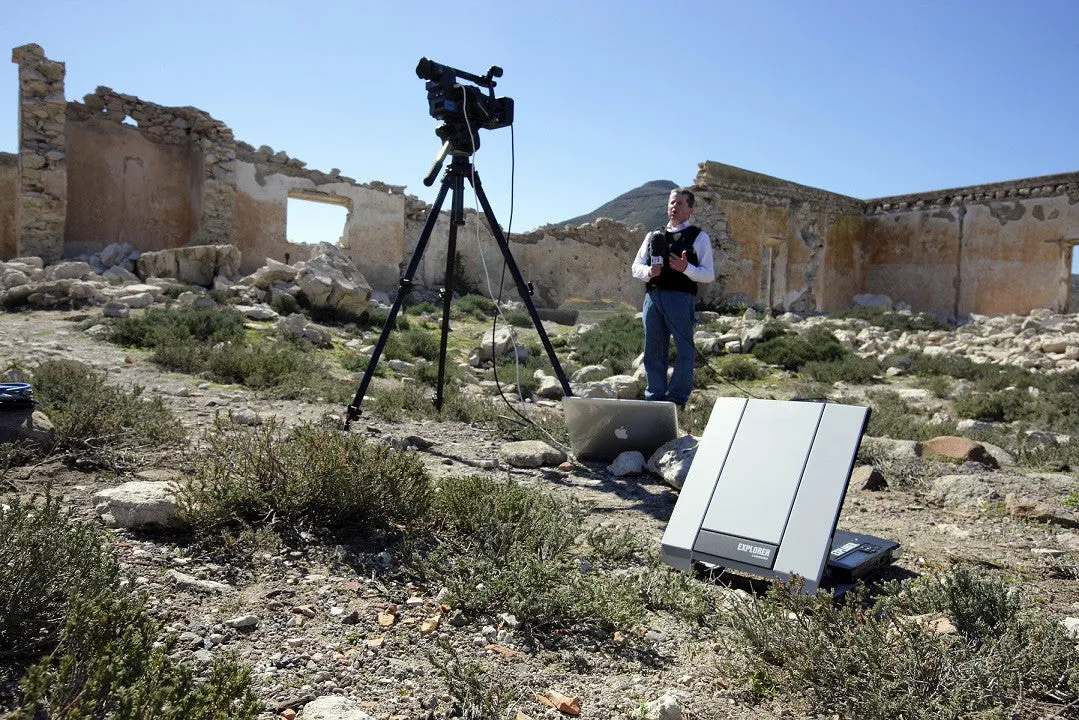

The smallest full Class 1 BGAN terminal positioned to support broadcasters by enhancing the quality of mobile outside broadcasting

Fastest ever BGAN

The first and only BGAN terminal to support the full High Data Rate on-demand streaming service from Inmarsat. With speeds averaging 650 kbps, the EXPLORER 710 sets a new standard for mobile video news gathering.

Double the speed with Plug & Play bonding; simply connect two EXPLORER 710 terminals with an ethernet cable and achieve streaming rates over 1 Mbps.

Smart and Easy

EXPLORER 710 introduces smart devices to the world of BGAN, enabling users to connect their own smart phone for terminal control, voice calls and connectivity. The EXPLORER Connect App with a SIP soft phone is available on Android and IOS.

Other features include a USB host interface, hot-swappable batteries, a large easy-to-use LED display and multiple interfaces to support a wide range of applications.

Tech Specs

(PDF)

Dimensions: Total H / W / D	332 / 279 / 54 mm 13.07 / 10.98 / 2.13 inches
Weight:	Total weight: 3.5 kg / 7.7 lbs (incl. battery) Antenna: 1.9 kg / 4.2 lbs Transceiver (incl. battery): 1.6 kg / 3.5 lbs
Global Services	Voice: 4 kbps AMBE 2 Premium voice: 3.1 kHz audio, 64 kbps Standard IP: Up to 492 kbps Streaming IP: 32, 64, 128 kbps (256 kbps & BGAN X-Stream) High Data Rate Streaming: Min. 600 kbps Min. 300 kbps (Half-channel HDR) ISDN: UDI 64 kbps / RDI 56 kbps SMS: Not supported
Inmarsat frequencies:	1518.0 - 1525.0 MHz (Rx) (EMEA) 1525.0 - 1559.0 MHz (Rx) 1626.5 - 1660.5 MHz (Tx) 1668.0 - 1675.0 MHz (Tx) (EMEA)
EIRP:	20dBW ±1dB

Service

Prepaid Service

Prepaid Usage Options	Units Used
Standard IP per MB	9.1
Voice per Minute	1.2
SMS per Message	0.5
Streaming per Minute – 32 kbps	3.6
Streaming per Minute – 64 kbps	6.9
Streaming per Minute – 128 kbps	12.0
Streaming per Minute – 176 kbps	17.0
Streaming per Minute – 256 kbps	20.7
HDR Streaming per Minute – 325/64 kbps	20.7
HDR Streaming per Minute – 325 kbps	28.0
X-Streaming per Minute – 450 kbps	29.0
HDR Streaming per Minute – 650/64 kbps	32.0
HDR Streaming per Minute – 650 kbps	38.0

Downloads

EXPLORER Connect App

EXPLORER Connect is for management of the Cobham SATCOM EXPLORER 510 and EXPLORER 710 satellite terminals.

EXPLORER Connect offers monitoring and configuration of the EXPLORER terminal and includes a built-in satellite phone for making or receiving satellite calls using the EXPLORER terminal.

Satellite Phone - Use your phone as a satellite phone to make and receive calls via the EXPLORER terminal
Terminal Access - Open the terminal's web interface for management and configuration
Pointing - Activate the pointing process towards the BGAN satellite and see signal strength
Dashboard - See the terminal status

Available on: and
